Power
Output power: 1000 W
Specification compliance: ATX 3.1
80 Plus Gold certified, 90% efficiency
Active Power Factor Correction (PFC)
1 x +12V rail
Input voltage: 120 V AC / 230 V AC (100 V AC - 240 V AC range)
Input frequency: 47-63 Hz
Output
5 V DC @ 20 A
3.3 V DC @ 20 A
12 V DC @ 83.3 A
-12 V DC @ 0.3 A
5 V SB @ 3 A

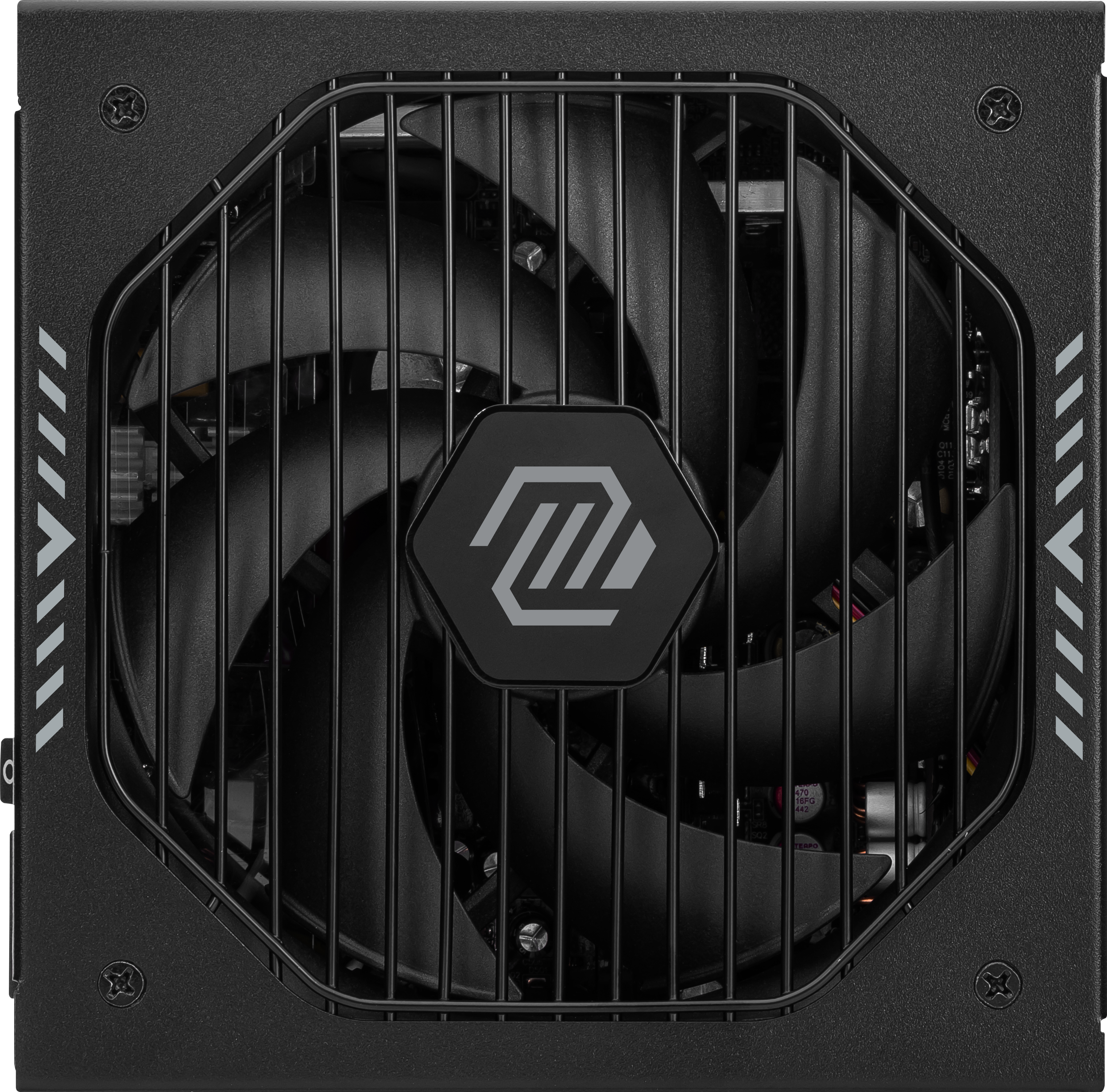

Cooling
1 fan, 135 mm
Fluid Dynamic Bearing
Protection
Over Current
Over Temperature
Over Power
Short Circuit
Over Voltage
Under Voltage
Surge & Inrush Protection
No Load
Features
Fully modular

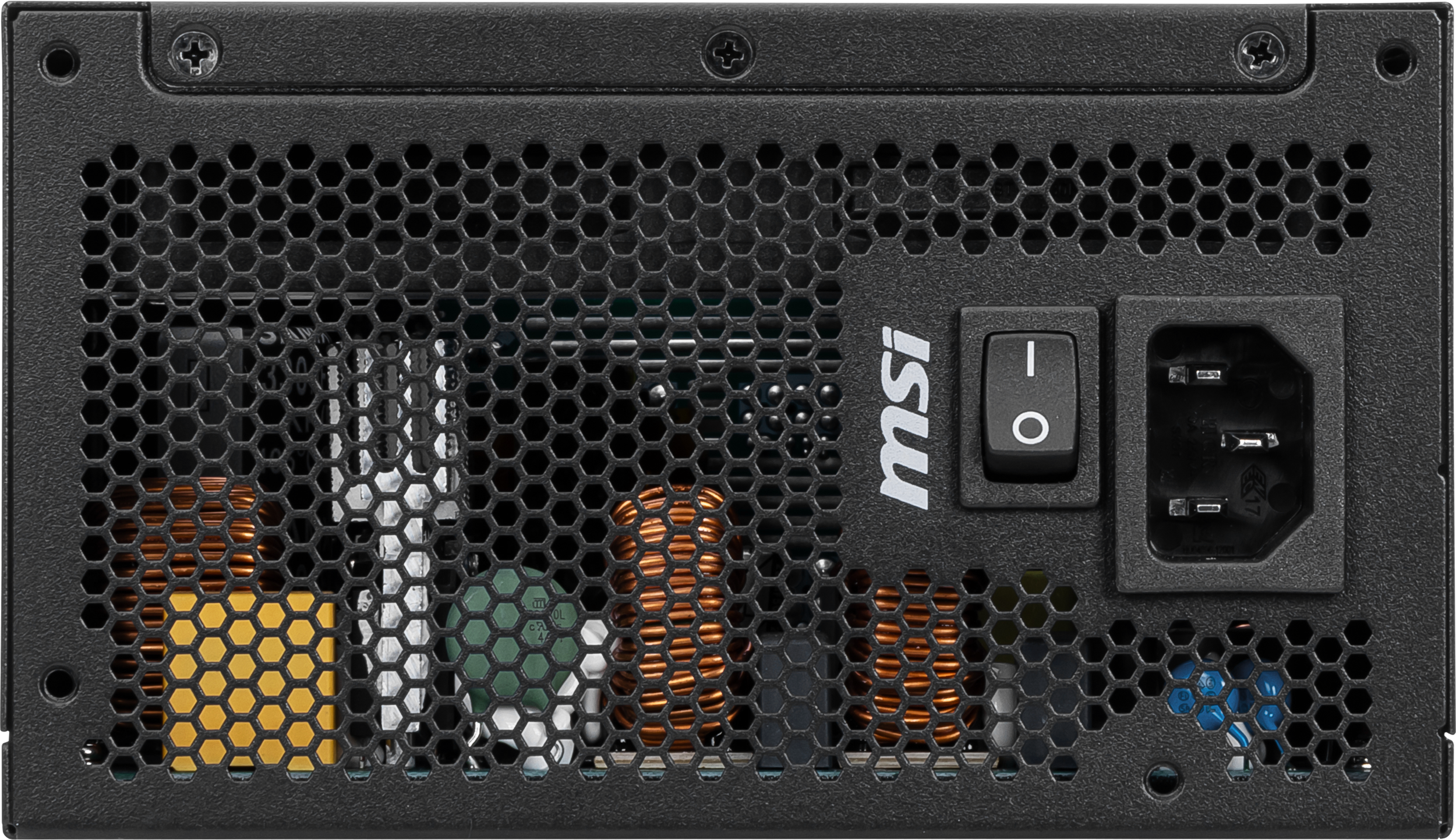

On/Off switch
Low noise

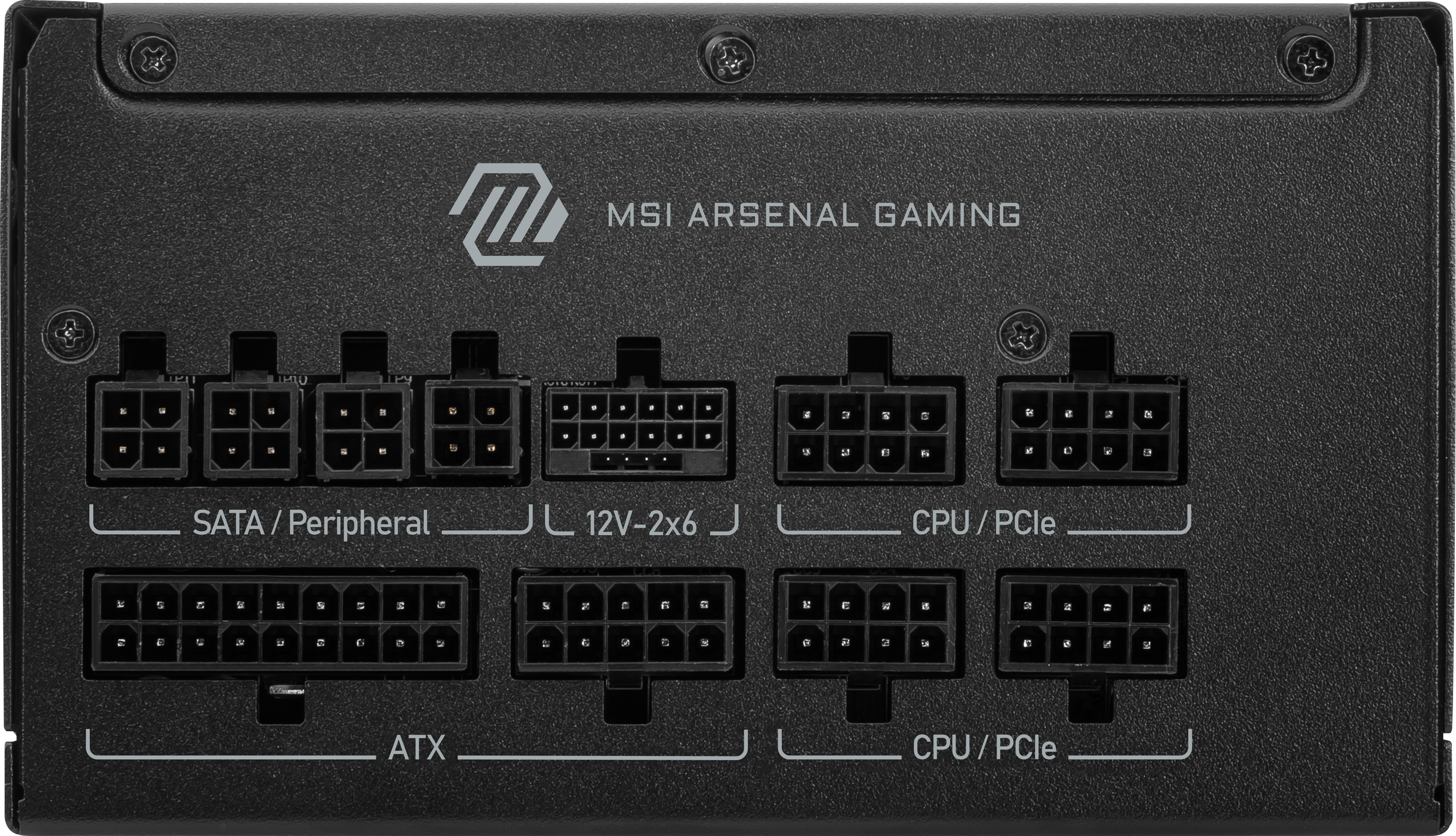

Connectors
PCI Express 5.1 connector
4 x 6+2 pin PCI Express power
2 x 4+4 pin CPU power
11 x SATA power
4 x 4-pin Molex power
Physical
Form factor: Internal
Height: 3.4"
Width: 5.9"
Depth: 5.9"
Weight: 7.54 lb (approximate)
