MSI Pro B840-P WIFI Gaming Desktop Motherboard - AMD B840 Chipset

Processor & Chipset

• Chipset: AMD B840

• Processor socket: Socket AM5

• Supports 1 processor

• Supported processors: Ryzen 9, Ryzen 7

Memory

• 4 memory slots

• DDR5 SDRAM, DIMM / UDIMM form factor

• Maximum memory: 256 GB

• Memory speeds: 8000 MHz, 6400 MHz, 5600 MHz, 4800 MHz

Storage

• Controller type: Serial ATA/600

• 4 SATA interfaces

• 2 M.2 interfaces

• RAID supported: 0, 1, 10

Expansion

• 5 expansion slots (5 PCI Express slots total)

• 2 x PCI Express x16 slots

• 3 x PCI Express x1 slots

• PCI Express 4.0 / 3.0

Video

• Onboard video: CPU dependent

Audio

• 7.1 channel audio

Networking

• Gigabit Ethernet

• 2.5 Gigabit Ethernet

• Wireless LAN: IEEE 802.11 a/b/g/n/ac/ax/be

• Bluetooth 5.4

• 1 x RJ-45 port

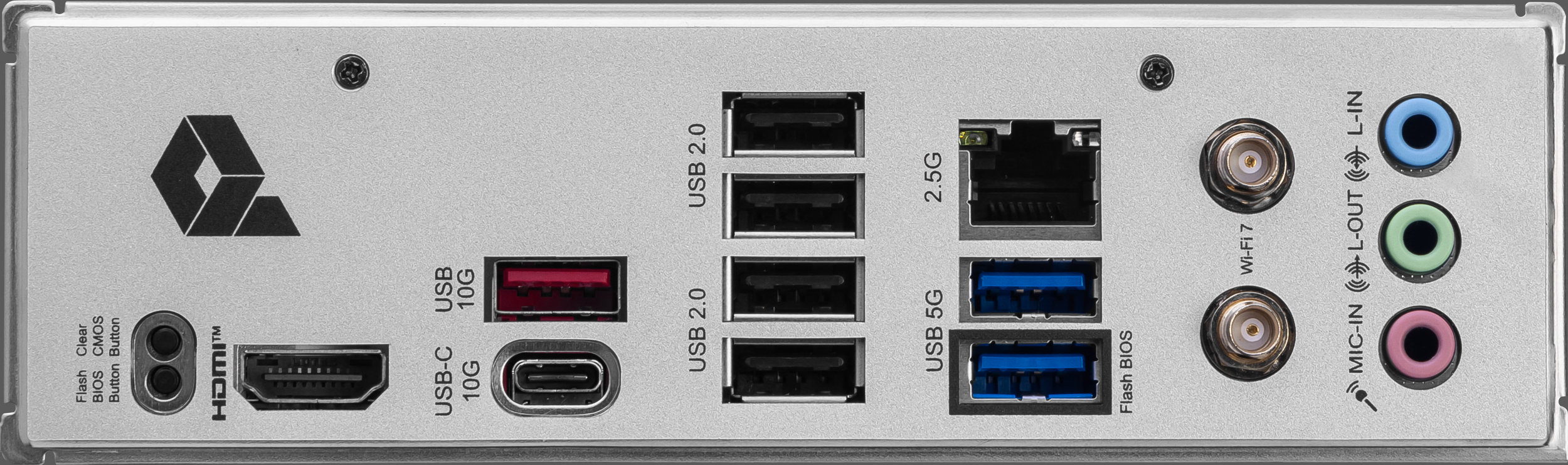

Rear Ports

• 8 USB ports total (4 x USB 2.0)

• HDMI 2.1

Onboard Interfaces

• 7 onboard USB ports (4 x USB 2.0)

• 4 SATA

• 2 M.2

Physical

• Form factor: ATX

• Width: 12"

• Depth: 9.6"

• Color: Silver
